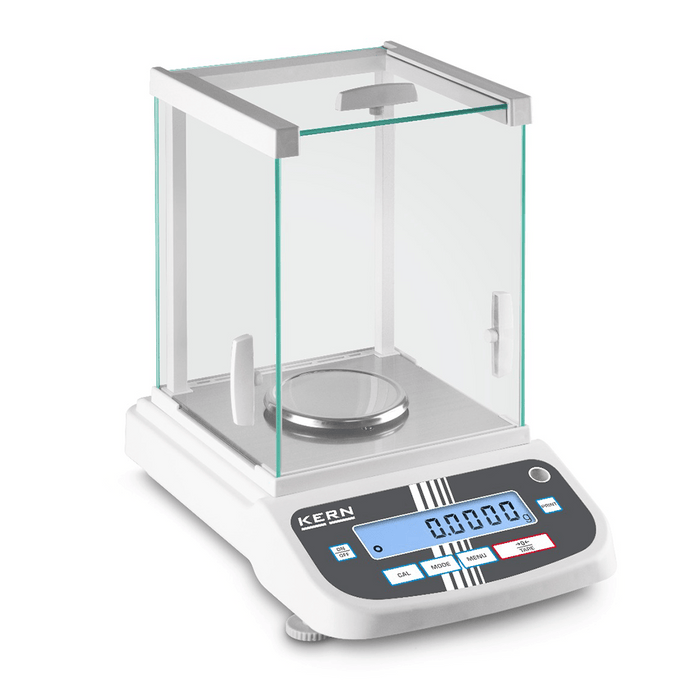

Kern ADB/ADJ Analytical Balance

by Kern & Sohn

£760.00 - £990.00

£770.00

£760.00 - £990.00

£770.00

(excl VAT)

SKU ADB 100-4

Key Features:

Compact, space-saving analytical balance
Large glass draught shield with 3 sliding doors for easy access
ADJ models have internal calibration (external on ADB models)
Ideal for educational environments, research facilities and jewellers

Data Sheet

Manual

Quantity

What is the Kern ADB/ADJ Analytical Balance?

The ADB/ADJ is a range of space-saving analytical balances from Kern. These carat balances have a readout of 0.001 ct and a weighing range of 600 ct. The high level of accuracy helps to save money whenever you are weighing valuable precious stones or metals. These are practical weighing balances for small spaces, with a simple and convenient 6-key operation. An RS-232 output is also featured, allowing for the connection of a printer or PC.

The balances, perfect for jewellery weighing, boast useful features, including a parts counting and percentage weighing option designed to make weighing tasks easier and faster. There is also a level indicator and levelling feet for precise levelling of the balance fitted as standard, giving the most accurate weighing result. There’s also a large glass draught shield with three sliding doors for easy access to the items being weighed.

Automatic internal adjustment in the case of a change in temperature ≥ 2 °C or time controlled for every 3 hours, ensures the Kern ADB/ADJ Analytical Balance has a high degree of accuracy and makes the balance independent of its location of use.

What is the difference between the ADB and the ADJ?

ADB and ADJ models in this range are identical, the only difference being that the ADB models have external calibration, and the ADJ models have internal calibration.

Internal calibration means that the balance can self-calibrate. Although the ADB are lower-priced than the ADJ, external calibration means calibration weights would be needed to calibrate the ADB.

Popular applications for the Kern ADB/ADJ Analytical Balance

The Kern ADB/ADJ Analytical Balance is a versatile balance, that can be used in educational and research facilities. The inclusion of a karat unit makes the scale ideal as a jewellery scale suited to weighing precious stones, metals and jewels.

See more analytical balances here. Need help with choosing the right balance for your needs? Contact us here.

Specifications

Model	ADB 100-4	ADB 200-4	ADB 600-C3	ADJ 100-4	ADJ 200-4	ADJ 600-C3
Capacity	120g	220g	600ct	120g	220g	600ct
Readability	0.1mg	0.1mg	0.001ct	0.1mg	0.1mg	0.001ct
Linearity	0.4mg	0.4mg	0.8mg	0.4mg	0.4mg	0.8mg
Pan Size	90mm Ø	90mm Ø	90mm Ø	90mm Ø	90mm Ø	90mm Ø
Weighing Units	g ct oz lb	ct g oz lb	g ct oz lb	g ct oz lb	g ct oz lb	g ct oz lb
Calibration	External	External	External	Internal	Internal	Internal
Operating Temp	10 °C to 30 °C	10 °C to 30 °C	10 °C to 30 °C	10 °C to 30 °C	10 °C to 30 °C	10 °C to 30 °C
Display	LCD	LCD	LCD	LCD	LCD	LCD
Power Supply	100-265V; 50-60Hz; 2.0A	100-265V; 50-60Hz; 2.0A	100-265V; 50-60Hz; 2.0A	100-265V; 50-60Hz; 2.0A	100-265V; 50-60Hz; 2.0A	100-265V; 50-60Hz; 2.0A
Construction	Plastic	Plastic	Plastic	Plastic	Plastic	Plastic
Net weight	4.4kg	4.4kg	3.8kg	5.0kg	5.0kg	4.5kg
Overall Dims.	230 mm x 310 mm x 330 mm	230 mm x 310 mm x 330 mm	230 mm x 310 mm x 210 mm	230 mm x 310 mm x 330 mm	230 mm x 310 mm x 330 mm	230 mm x 310 mm x 210 mm
Shipping Dims.	390 mm x 490 mm x 460 mm	380 mm x 490 mm x 460 mm	401 mm x 521 mm x 408 mm	375 mm x 524 mm x 412 mm	325 mm x 443 mm x 396 mm	336 mm x 455 mm x 425 mm
