Moisture analyser with high quality halogen lamp
20 suitable measurement conditions can be stored (10 for MF & 5 for ML)
Five choices of unique measurement programs for increased versatility
Ideal for determination of organic samples including oils, cosmetics and food

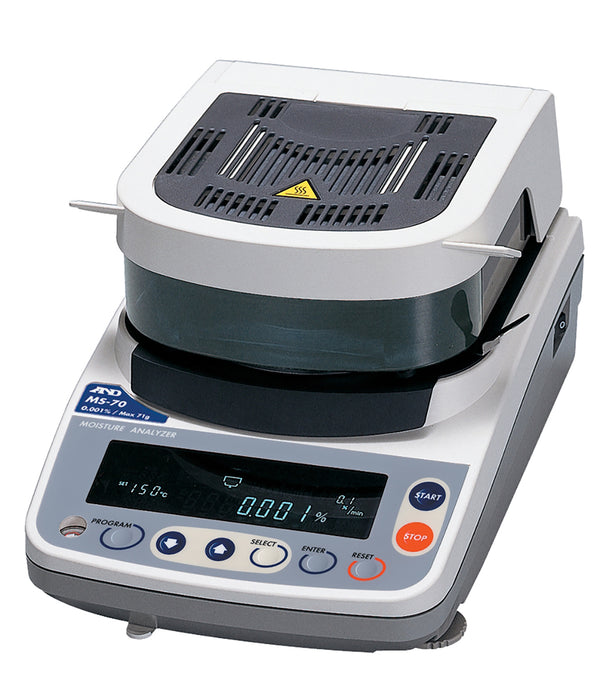

What is the A&D M Series Moisture Analyser?
A&D’s M Series Moisture Analyser utilises a straight halogen lamp and uniquely designed SRA (Secondary Radiation Assist) filter that gives shorter measurement time, thanks to fast and uniform heating. This is an accurate and reliable moisture analyser that can aid in advanced heating and drying applications in laboratory environments.
This is an ergonomically designed device with an easy to use pan handle that eliminates mishaps, such as burns, when moving a hot sample tray into or out of the unit from either side.
What are the features of the A&D M Series Moisture Analyser
High repeatability With SHS (Super Hybrid Sensor) featured as the weight sensor, ultra accurate moisture content determination is possible based on high precision weighing of even a small sample
WinCT-Moisture is an original software application designed to display a graph of moisture content rate change while measuring with a connected PC
Clear and easy-to-see, large VFD display that shows measurement, setting value, change in moisture content, action status, data number and other important information are clearly displayed.
Up to 20 suitable measurement conditions can be stored and recalled, which saves time and prevents the user from making a mistake when setting (10 for MF & 5 for ML). For measurement result, up to 100 pieces of data can be stored and output at once (50 for MF & 30 for ML).
Five choices of measurement programs, Standard, Automatic, Quick, Timer, and Manual Mode are provided.
Standard Mode: Just measurement accuracy, HI, MID or LO needs to be set.
Automatic Mode: Ends measurement when moisture content changes at a rate less than the set rate.
Quick Mode: Begins heating samples at 200°C for 3 minutes, then is the same as Automatic Mode.
Timer Mode: Continues measurement for a set duration of time (1˜ 60 minutes: by 1 min, 60˜ 480 minutes: by 5 minutes.)
Manual Mode: Stop button should be pressed to end measurement (Max. heating time: 480 minutes.)
Popular applications of the A&D M Series Moisture Analyser
This high-tech moisture balance can be used for accurate moisture determination of organic samples including compost, oils, cosmetics and food. For more information about A&D's M Series of moisture analysers, please contact us.
