A&D BM Semi Micro Analytical Balance - Inscale Scales

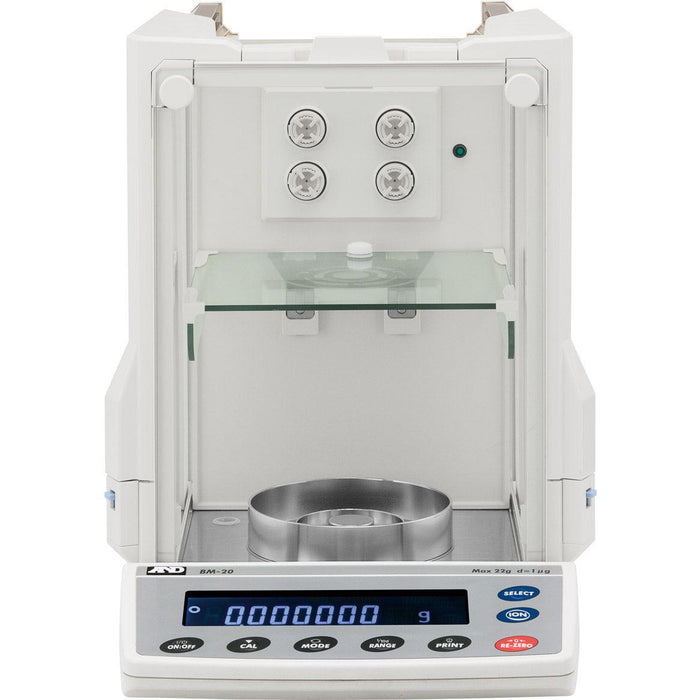

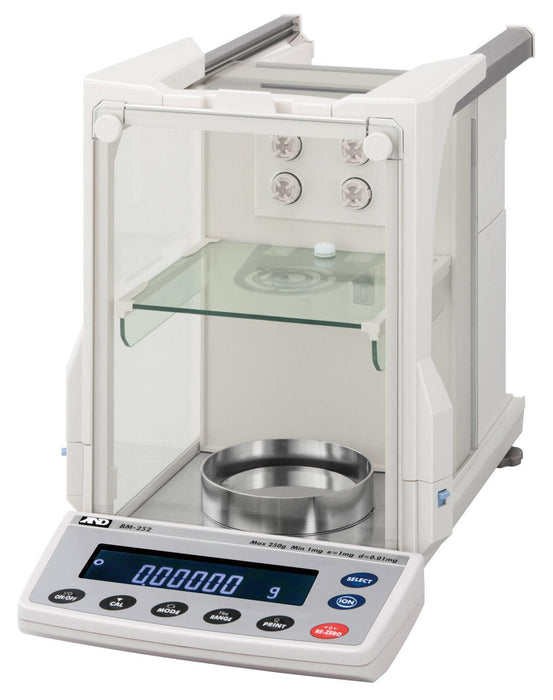

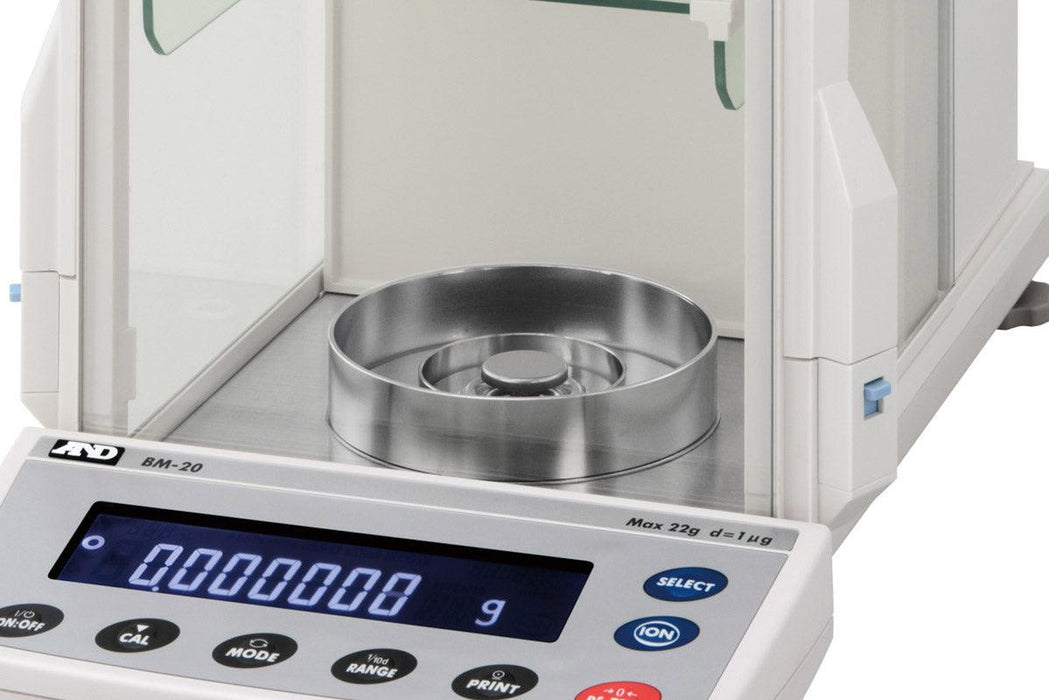

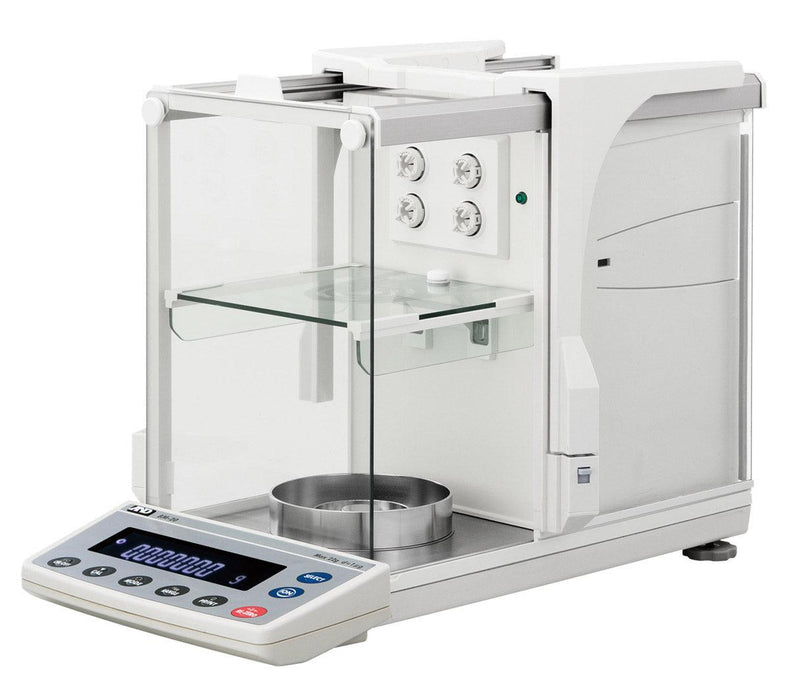

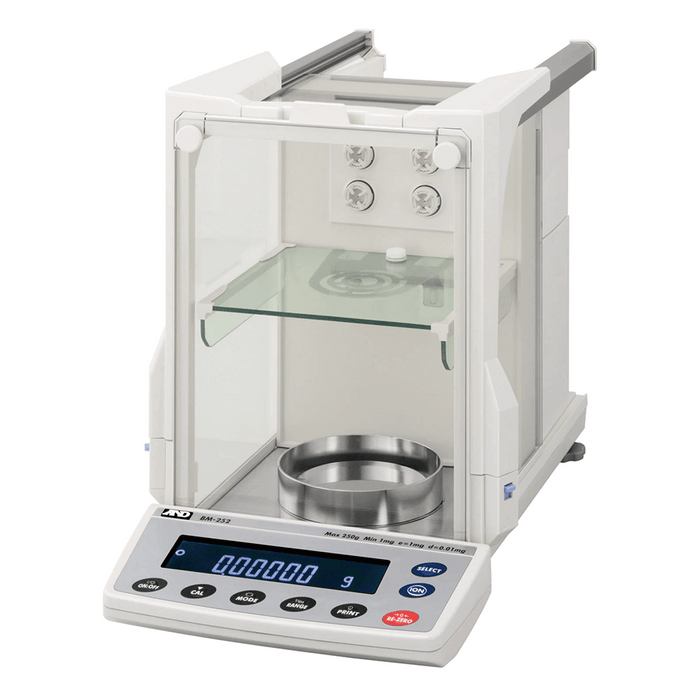

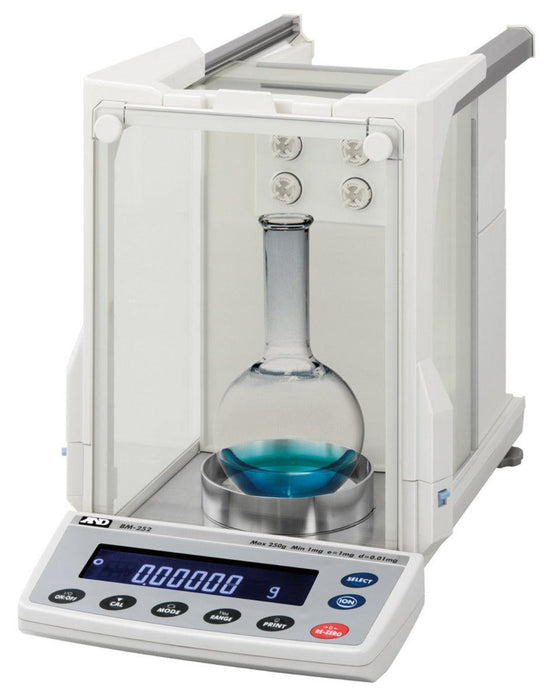

A&D BM Semi Micro Analytical Balance

by A&D Instruments Ltd
£3,808.00 - £12,070.00
£5,811.00
£3,808.00 - £12,070.00
£5,811.00
(excl VAT)
SKU BM-252

Key Features:
  • Exceptionally high precision semi-micro and microbalance
  • Practical parts counting, percentage weighing and density determination functions

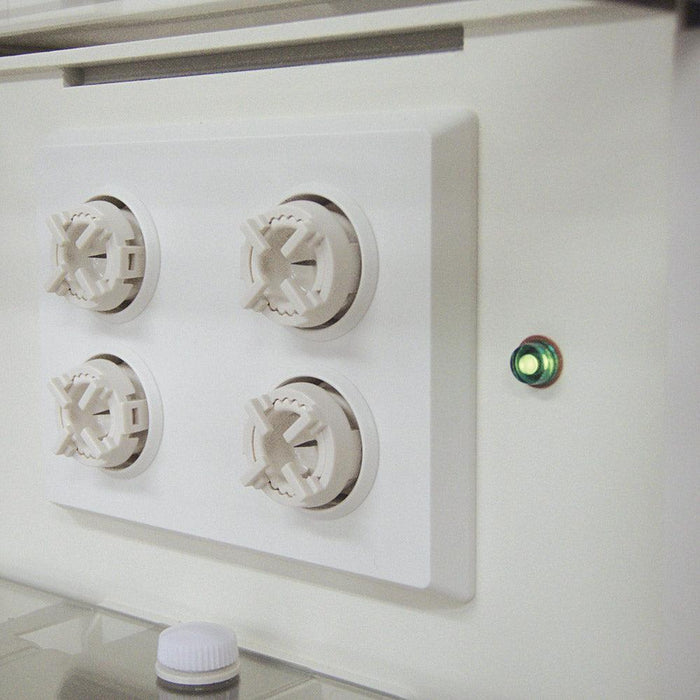

  • Static resistant design with fan-less ionizer, anti-static glass and evaporated metal coating
  • Suitable for testing and research facilities; educational environments and jewellery weighing
PDF Document
Data Sheet
PDF Document
Manual

Specifications

Model BM-20 (with AD-1676) BM-22 (with AD-1676) BM-5 (with AD-1676) BM-5D (with AD-1676) BM-252 BM-200 BM-300 BM-500
Capacity 22g 5.1/22g 5.2g 2.1/5.2g 250g 220g 320g 520g
Readability 0.001mg 0.001/0.01mg 0.001mg 0.001/0.01mg 0.01mg 0.1mg 0.1mg 0.1mg
Linearity 0.01mg 0.01/0.02mg 0.01mg 0.01/0.02mg 0.1mg 0.2mg 0.3mg 0.5mg
Pan Size 25mm Ø 25mm Ø 25mm Ø 25mm Ø 90mm Ø 90mm Ø 90mm Ø 90mm Ø
Weighing Units g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg g mg oz ozt ct mom dwt gr pcs % sg
Calibration Internal Internal Internal Internal Internal Internal Internal Internal
Operating Temp 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation) 5 to 40 °C (41 to 104 °F), 85%RH or less (no condensation)
Display LCD LCD LCD LCD LCD LCD LCD LCD
Power Supply AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA AC adapter / approx. 30 VA
Net weight 15kg 15kg 24kg 24kg 15kg 15kg 15kg 15kg
Overall Dims. 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm 259 (W) × 466 (D) × 326 (H) mm
Shipping Dims. 680 x 480 x 600mm 680 x 480 x 600mm 860 x 690 x 630mm 860 x 690 x 630mm 680 x 480 x 600mm 680 x 480 x 600mm 680 x 480 x 600mm 680 x 480 x 600mm
